Using Concierge via the Edge API

The Edge API lets you run a Concierge router from outside the Chili Piper UI – server-side, from a backend agent, or from a hybrid embed. There are two ways to use it:

• Return a booking URL that you redirect the lead to (the embed pattern);
• Schedule a meeting programmatically without any UI (the no-UI pattern).

Both call the same routing endpoint with an API token; the difference is whether you pass an interval.

Table of Contents

• Prerequisites
• Step 1: Generate an API Token
• Step 2: Pick an Access Pattern
• Option A: Return a Booking URL
• Option B: Schedule Programmatically
• Qualify a Lead Without Scheduling
• Body Fields and Triggers
• Share Instructions with Your Developer
• Good to Know

Prerequisites

Before setting up the Edge API, confirm the following:

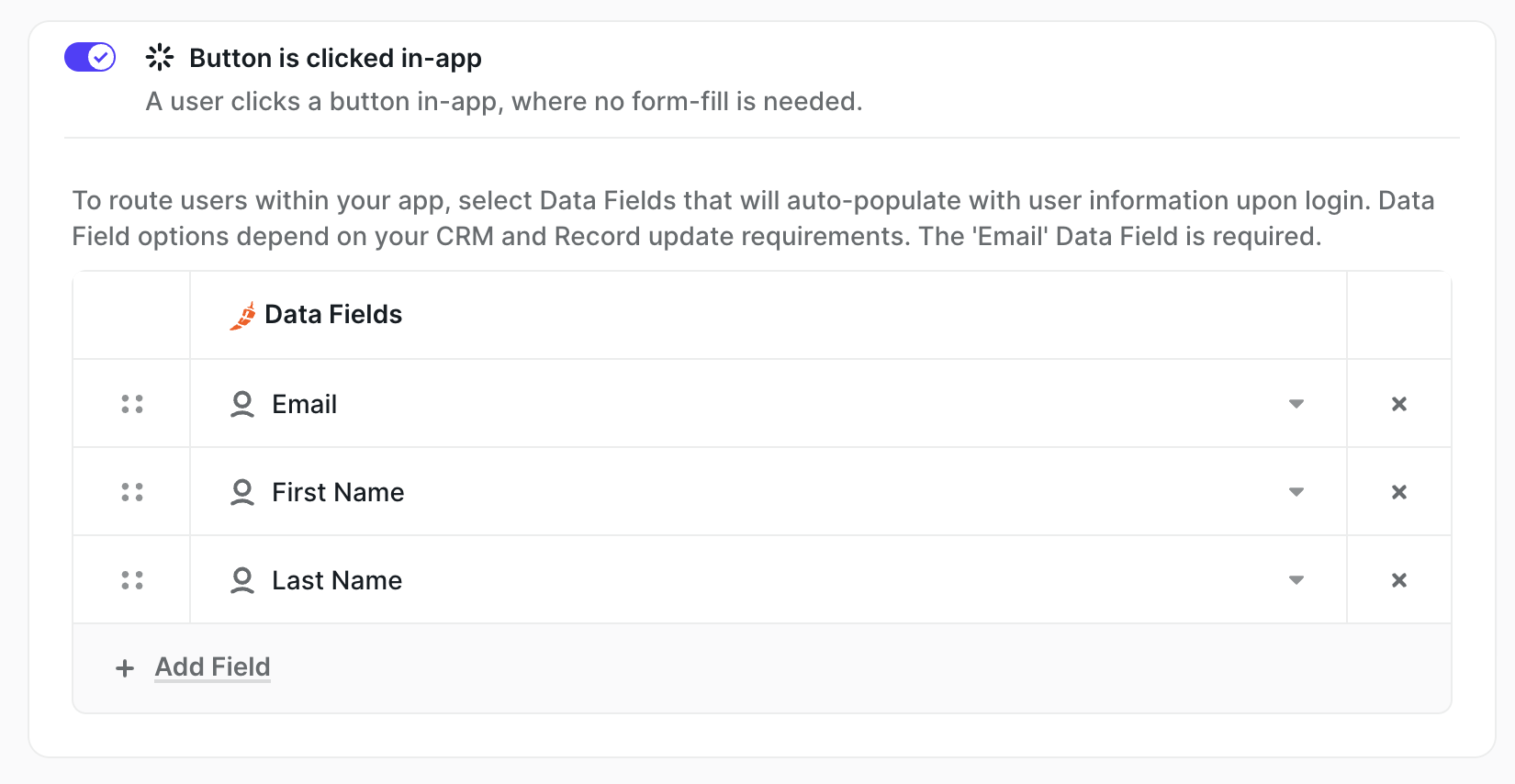

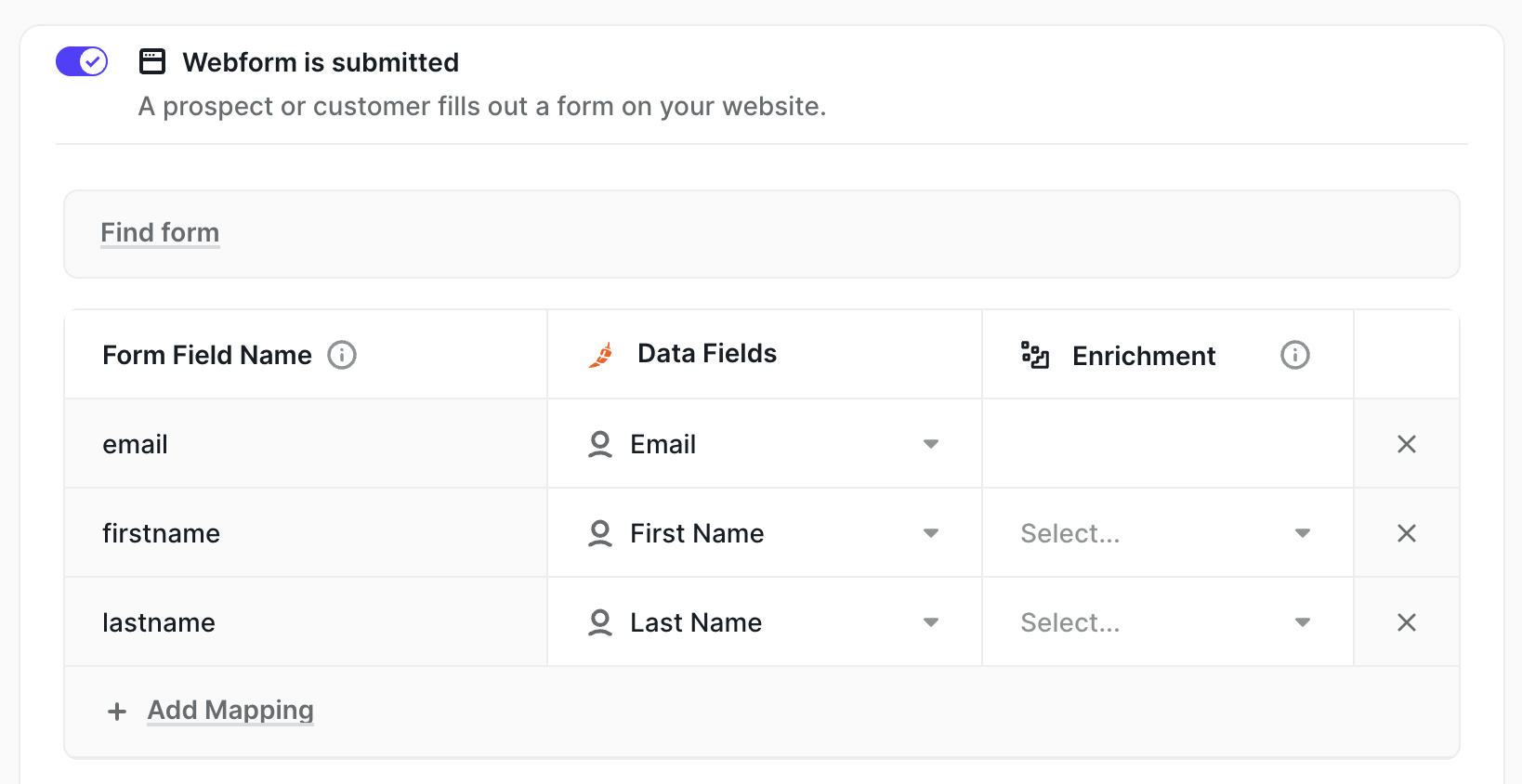

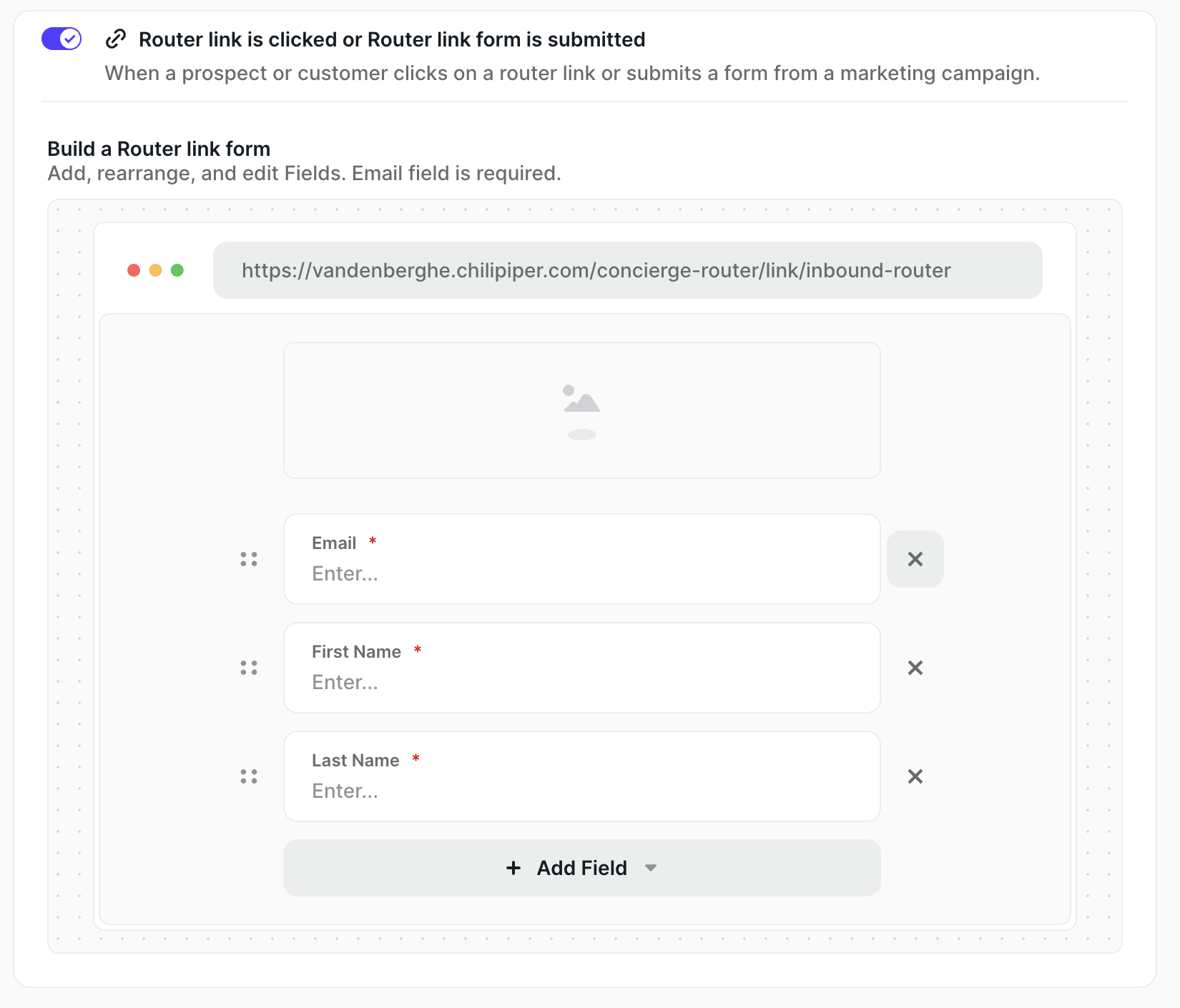

• You have a Concierge router with one of these triggers configured: Third-party Form is Submitted, Button is clicked in-app, or Router link is clicked or Router link form is submitted;
• A user with the Admin role in Chili Piper is available to generate the API token in Admin Center.

Step 1: Generate an API Token

1. Go to Admin Center and navigate to the Credentials page;
2. Click Generate Token;

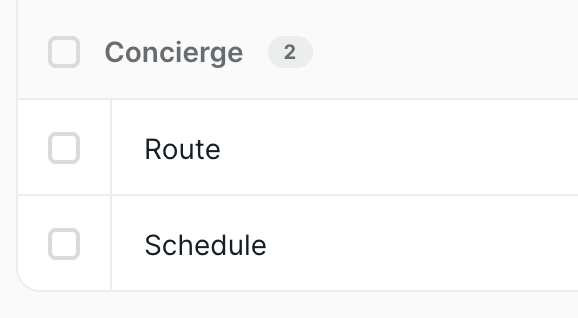

3. Select the Concierge.route and Concierge.schedule permissions;

4. Name the token to match the router you are using;
5. Copy the token immediately – it is only shown once and cannot be retrieved later.

Step 2: Pick an Access Pattern

Both patterns POST to the same endpoint:

https://fire.chilipiper.com/api/fire-edge/v1/org/concierge/routers/[routerSlug]/rest

Authenticate with your API token in the Authorization header:

Authorization: Bearer ADD_TOKEN_HERE

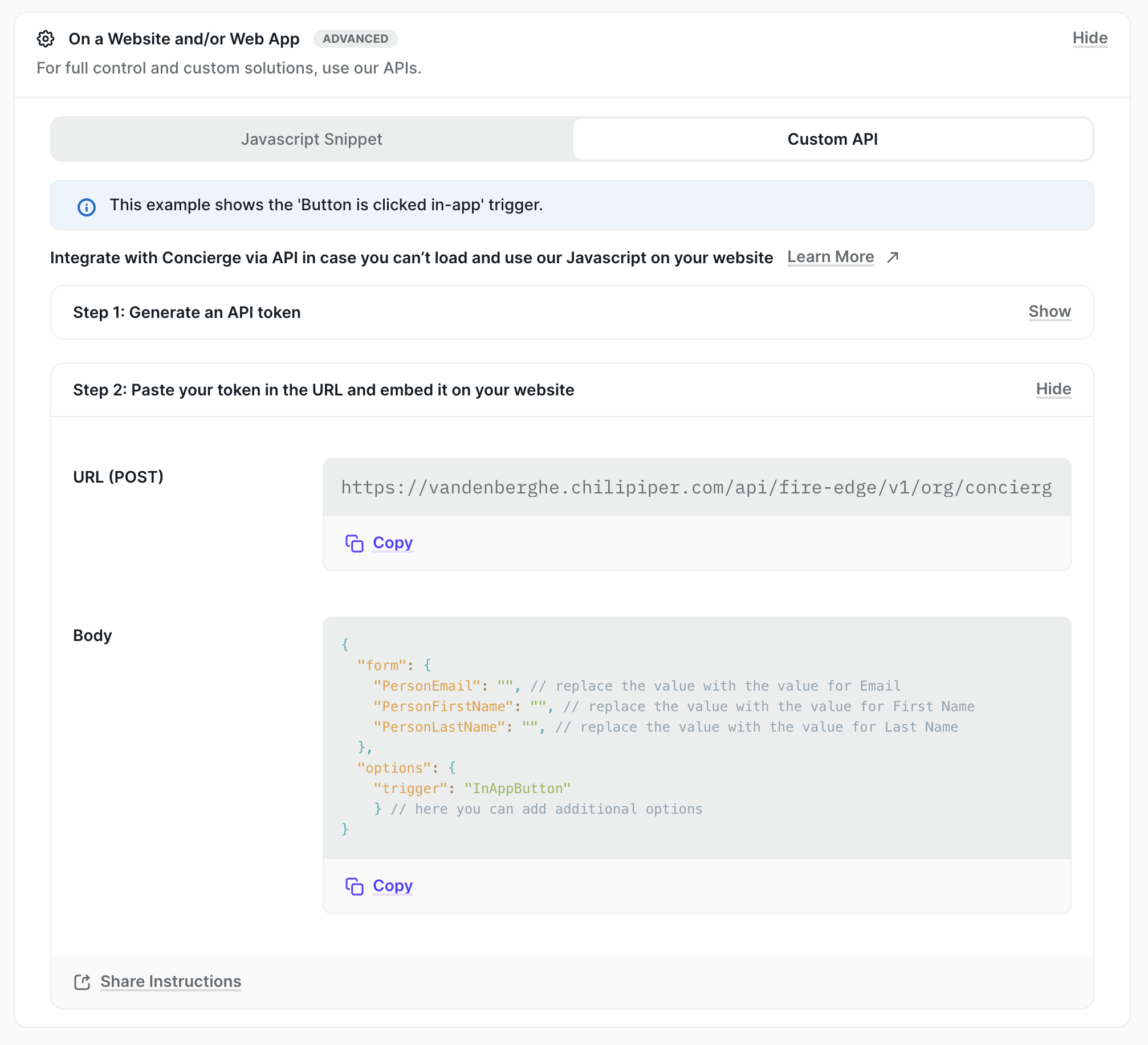

You can also click Copy on the Custom API tab inside the router's Booking Page settings to copy the URL and a starter request body.

Option A: Return a Booking URL

Use this when the lead can be redirected to a Chili Piper page to pick a slot and book.

Request:

{
  "form": {
    "PersonEmail": "lead@example.com",
    "PersonFirstName": "Jamie"
  },
  "options": {
    "trigger": "InAppButton"
  }
}

Response (key fields):

{
  "routeId": "9413f879-...",
  "routingLink": "https://your-tenant.chilipiper.com/concierge-router/[routerSlug]/routing/9413f879-...",
  "schedulingAllowed": true,
  "assignment": { "userId": "...", "type": "user" }
}

Redirect the lead to routingLink to complete the booking.

Option B: Schedule Programmatically

Use this when no Chili Piper UI is involved.

This is a two-step flow.

Step 1: Route and get available slots

{
  "form": {
    "PersonEmail": "lead@example.com",
    "PersonFirstName": "Jamie"
  },
  "options": {
    "trigger": "InAppButton"
  },
  "interval": {
    "startsAt": "2026-04-14T00:00:00Z",
    "duration": "7 days"
  }
}

The response includes schedulingData with startTimes:

{
  "routeId": "9413f879-...",
  "schedulingAllowed": true,
  "schedulingData": {
    "meetingTypeRef": { "id": "..." },
    "duration": "1800000 milliseconds",
    "startTimes": [
      { "startTime": "2026-04-14T17:00:00Z", "attendees": [...] },
      { "startTime": "2026-04-14T17:30:00Z", "attendees": [...] }
    ]
  }
}

Step 2: Book a Slot

{
  "startTime": "2026-04-14T17:00:00Z"
}

Qualify a Lead Without Scheduling

• Confirm a lead is routable;
• See which user they would be assigned to;
• Decide whether to surface a scheduler.

No routing session is consumed until scheduling occurs.

Body Fields and Triggers

Always pass options.trigger.

• ThirdPartyForm
• InAppButton
• RouterLink

Share Instructions with Your Developer

If another team member is implementing the API integration, you can use the Share Instructions button in the Custom API tab.

• The endpoint URL;
• Token generation steps;
• A link to Admin Center;
• A link to this support article.

Good to Know

• The Edge API works with all supported triggers;
• API tokens are shown only once;
• Only Admins can generate tokens;
• Scope each token to a single router;
• Tokens must be created in Admin Center;
• Routing sessions are single-use.
